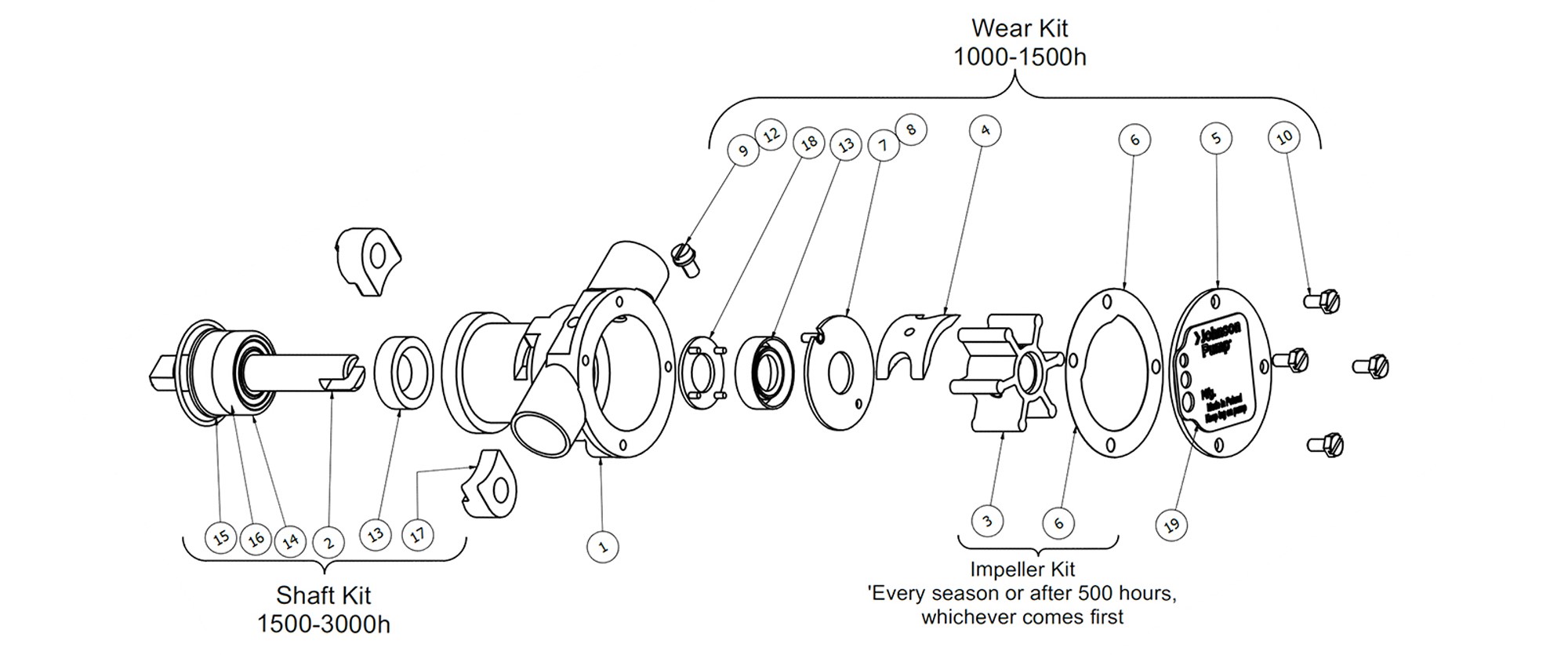

Spare parts list Johnson Pump 10-35211-5
10-35211-5
| Nr. | HAN | Description | Availability | Unit Price | Installed quantity | Quantity |
|---|---|---|---|---|---|---|
| 10-35211-5 | Johnson Pump 10-35211-5 Bronze Impeller Pump F35B-9, flange-mounted, 3/8" 18 NPSF internal thread, 1/1, MC97 |
|
244,27 € | 1 |
|
|
| 09-45589 | Johnson Pump 09-45589 Service-Kit F35B-8/-9 |
|
48,42 € | 1 |
|
|
| 09-808B-1 | Johnson Pump 09-808B-1 Impeller, MC97, PIN, Service Kit |
|
19,90 € | 1 |
|
|
| 1 | 01-35096-3 | PUMP BODY F35B-9 | Currently not available | 1 | ||
| 2 | 01-45751 | Johnson Pump 01-45751 Shaft |
|
0,00 € | 1 |
|
| 3 | 09-808B-1 | IMPELLER F35 MC 97 | Currently not available | 1 | ||
| 4 | 01-42910 | Johnson Pump 01-42910 Cam brass F35 (1/1) |
|
28,04 € | 1 |
|
| 5 | 01-43239 | Johnson Pump 01-43239 Kit Endcover F35 |
|
18,20 € | 1 |
|
| 6 | 01-43240 | Johnson Pump 01-43240 Gasket F35 |
|
6,03 € | 1 |
|
| 7 | 01-45087 | Johnson Pump 01-45087 Wearplate F35, brass |
|
6,65 € | 1 |
|
| 8 | 01-42400 | Johnson Pump 01-42400 Pin F5/F7B/F70B |
|
6,03 € | 1 |
|
| 9 | 01-46794-03 | Johnson Pump 01-46794-03 Slotted cylinder head screw 8 - 32 UNC x 8, brass (05-04-114) |
|
6,03 € | 1 |
|
| 10 | 0.0141.500 | Johnson Pump 0.0141.500 Slotted hexagon head screw DIN 933, M4 x 10, brass (05-04-176) |
|
6,03 € | 4 |
|
| 12 | 01-46790-01 | Johnson Pump 01-46790-01 Washer (05-01-120) |
|
6,10 € | 1 |
|
| 13 | 0.2233.010 | Johnson Pump 0.2233.010 Lip Seal (05-29-139) |
|
14,99 € | 2 |
|
| 14 | 0.3431.748 | Johnson Pump 0.3431.748 Ball bearing (05-08-130) |
|
9,63 € | 2 |
|
| 15 | 0.0371.028 | Johnson Pump 0.0371.028 Circlip (05-34-131) |
|
6,03 € | 1 |
|
| 16 | 0.2173.468 | Johnson Pump 0.2173.468 O-Ring |
|
6,03 € | 1 |
|
| 17 | 01-43238 | Johnson Pump 01-43238 Clamp for pump attachment |
|
6,10 € | 2 |
|
| 18 | 01-45955 | Johnson Pump 01-45955 Spacer |
|
6,10 € | 1 |
|
| 9999 | JP_533 | INSTRUCTIONS/IMPELLER CARD | Currently not available | 1 |
