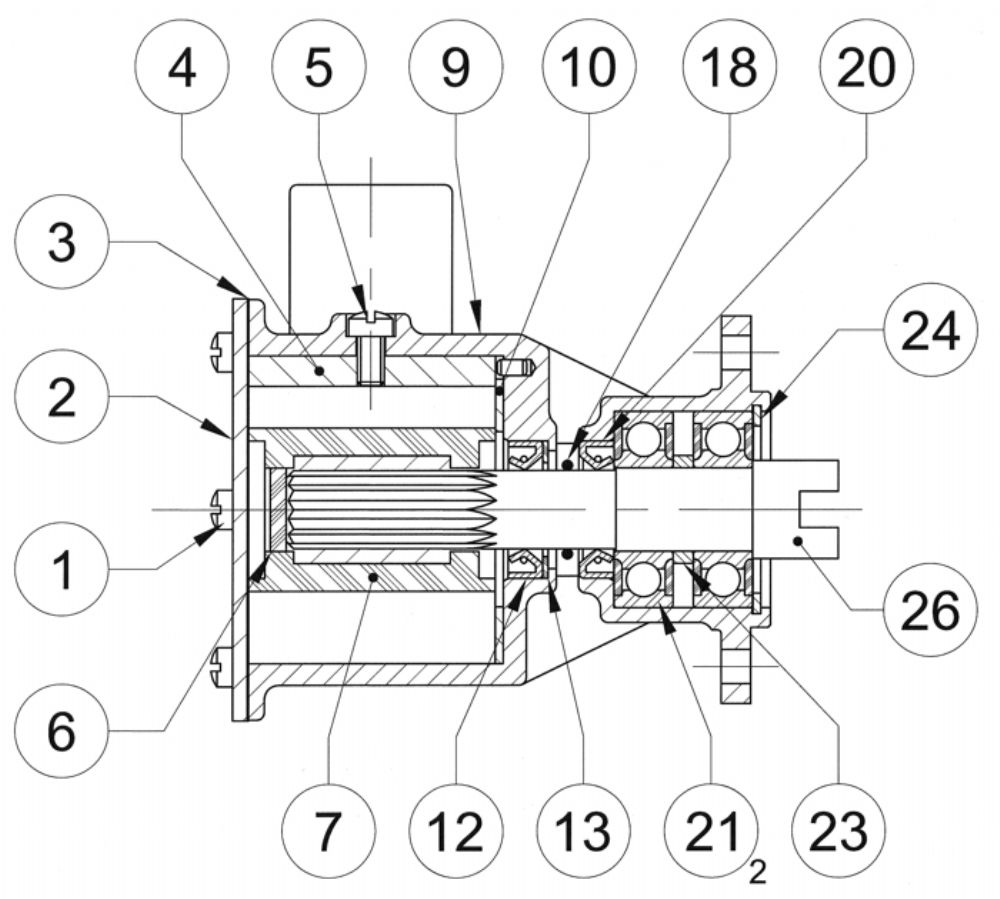

Spare parts list Jabsco 23430-1001
23430-1001
| Nr. | HAN | Description | Availability | Unit Price | Installed quantity | Quantity |
|---|---|---|---|---|---|---|
| SK385-0001 | SERVICE KITContains - Impeller, Seal, Gasket & End Cover Screws | Currently not available | 1 | |||
| 1 | SP1003-0111 | Jabsco SP1003-0111 Fillister Head Slot Screw M5x8 |
|
10,41 € | 6 |
|
| 2 | 11831-0000 | Jabsco 11831-0000 Kit Endcover |
|
44,21 € | 1 |
|
| 3 | 890-0000 | Jabsco 890-0000 Kit Gasket |
|
12,24 € | 1 |
|
| 4 | 934-0000 | Jabsco 934-0000 Cam brass BG080 (1/1) |
|
40,91 € | 1 |
|
| 5 | 91004-0090 | Jabsco 91004-0090 Fillister Head Slot Screw 12-24 x 3/8 (3 pcs.), alternate to SP1004-09 |
|
14,22 € | 1 |
|
| 6 | 4345-0000 | Jabsco 4345-0000 Spline Seal (3 pcs.) |
|
21,65 € | 1 |
|
| 7 | 17937-0001-P | Genuine Jabsco 17937-0001-P Neoprene Impeller Service Kit, including gasket and lubricant, for marine and industrial pumps |
|
43,50 € | 1 |
|
| 9 | 23434-1000 | Currently not available | 1 | |||
| 10 | 4156-0000 | Jabsco 4156-0000 Kit Wearplate, brass |
|
21,65 € | 1 |
|
| 12 | SP2700-1027B | Jabsco SP2700-1027B Seal |
|
16,07 € | 1 |
|
| 13 | 23431-0000 | Jabsco 23431-0000 Spacer |
|
20,41 € | 1 |
|
| 18 | X4020-215A | Jabsco X4020-215A O-Ring Nitrile 2,4 x 15,6 |
|
4,88 € | 1 |
|
| 20 | SP2700-1027B | Jabsco SP2700-1027B Seal |
|
16,07 € | 1 |
|
| 21 | SP2600-01 | Jabsco SP2600-01 Ball bearing |
|
14,09 € | 2 |
|
| 23 | 23474-0000 | Jabsco 23474-0000 Bearing Spacer |
|
0,00 € | 1 |
|
| 24 | SP1700-284 | Jabsco SP1700-284 Retaining Ring |
|
8,65 € | 1 |
|
| 26 | 23437-0000 | SHAFT | Currently not available | 1 |
